MARTE series and GIOVE series
WITH EMBEDDED REFRIGERATING GROUP
Thermoregulated stainless steel containers can be used for any need
inherent cooling or heating of liquid foods such as the controlled
fermentation of wine or beer, or storage of oil, milk and other beverages
Refrigerated stainless steel tanks; capacity 50, 75, 100,
200, 300, 500, 800, 1000, 1500 and 2000 Lt
series MARTE ( top open )
and series GIOVE (top
closed)
Born from our long experience of equipment for the food industry, our insulated
and refrigerated stainless steel containers are frequently used for the
controlled fermentation of beer due to the conical bottom at 60 ° (or 30 °, or
10 °)
These fermenters, unlike the classic tanks equipped with heat exchanger pockets,
do not require any connection to external glycol coolers as the refrigerator
motor, compliant with CE standards, is already included in the stainless steel
base of the tank itself, thus making the fermenter a totally autonomous unit
which only needs to be connected to the power for operation.

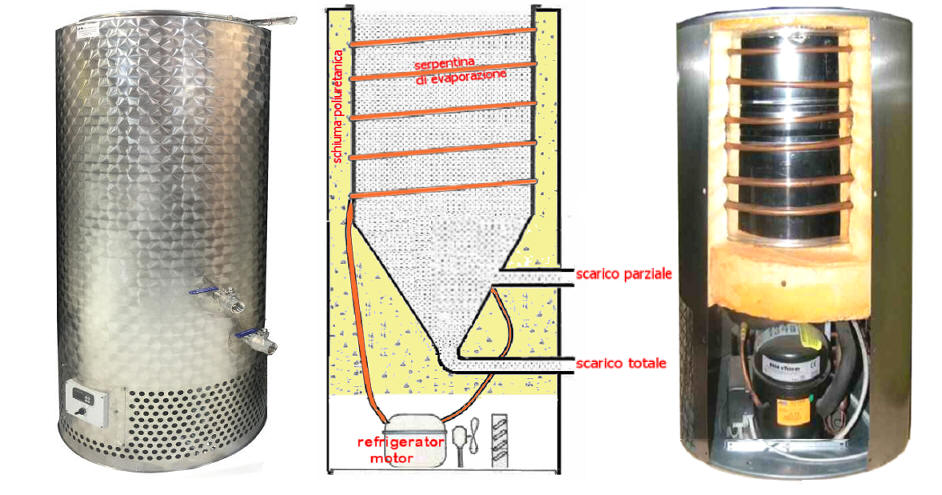

Cooling is achieved by a direct gas expansion coil in direct contact
with the external wall of the tank containing the liquid, allowing to cool
uniformly
The structure is then
insulated with 7 cm thick polyurethane foam.
The high thickness of the cavity filled with polyurethane foam ensures a high
thermal insulation allowing the machine to have a high energy efficiency and
consequently an extremely reduced electrical consumption.
A further outer containment cylinder, also in
stainless steel, encloses the whole and serves as a supporting structure.

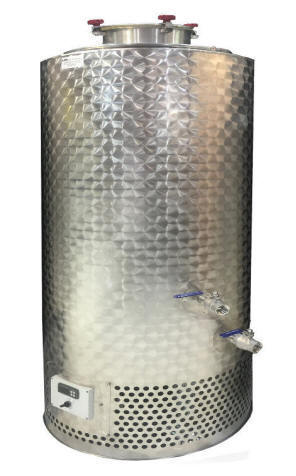

Can be open type (series MARTE ) or with upper manhole cover (GIOVE
series) and
are equipped with two drains: the top one, which serves as a partial drain, is
used for the withdrawal of the clarified liquid while the low, at
the center of the cone, it is used for the total discharge and emptying of lees
and / or deposits that occur during thermally controlled fermentations (precipitation
of yeasts, tartrates, etc.)
All tanks are equipped with a digital thermostat/thermometer that allows you to
set and maintain the desired temperature during the cooling cycle that can go
down up tor
-4° in case of standard motors (-8°with SUPER motors).
Upon request are also available versions also heated by electric
heaters (up to 30° or more ) which can to be used for beer fermentation and for malolactic
fermentation .
In the heating mode, we recommend the use of stirrers to prevent stratification
of the liquid.
|
